HYDRAULIC WORKSHOP PRESS
DESCRIPTION
DESCRIPTION

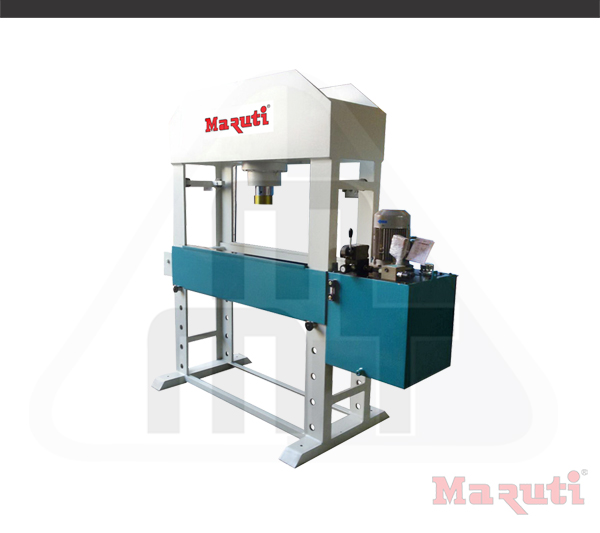

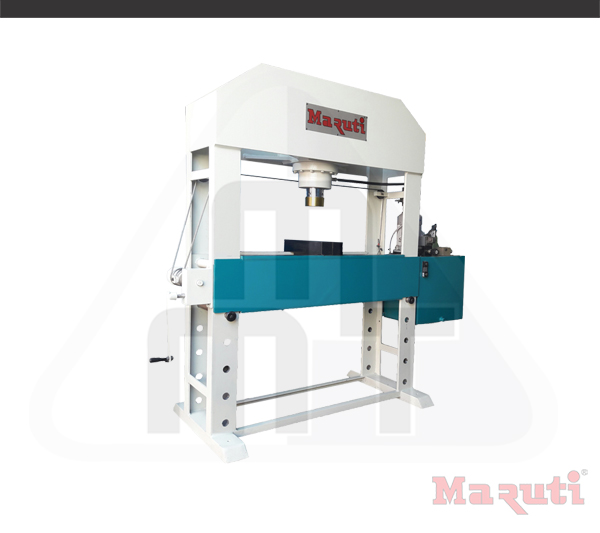

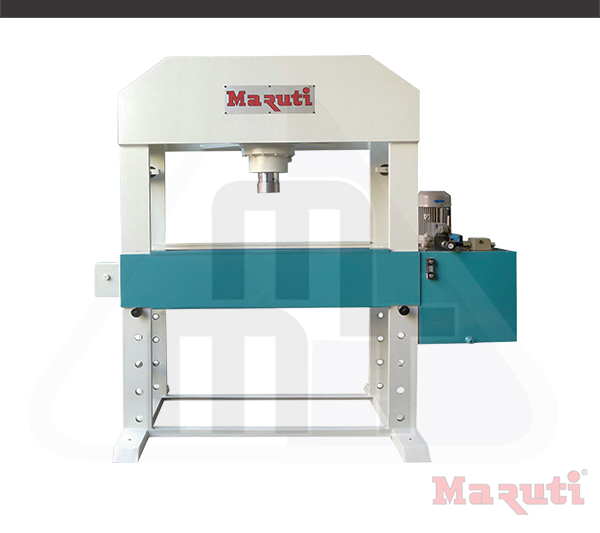

Hydraulic Workshop Press such as Power Operated Regular Work Shop Press.
The presses offered by us are manufactured using quality steel, iron and high grade raw material and advanced in order to remain in tandem with international standards and norms. These presses have the production capacity of up to 300 tones. Owing to their features like high performance and superior functionality, these Sheet Metal Machinery are widely demanded by the clients.
TECHNICAL SPECIFICATIONS
| Day Light | Total Height | Hole Pitch | Table Width | Press Width | Depth | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (Tons) | Stoke (mm) | Model | Min. H1 (mm) | Max. H2 (mm) | H3 (mm) | H4 (mm) | W1 (mm) | W2 (mm) | D1 (mm) | D2 (mm) | Motor(HP) |
| 15 | 150 | MWP15 | 150 | 600 | 1350 | 150 | 700 | 950 | 200 | 500 | 2 |
| 30 | 150 | MWP30 | 175 | 750 | 1625 | 150 | 750 | 1050 | 250 | 600 | 2 |
| 50 | 150 | MWP50 | 175 | 900 | 1900 | 150 | 900 | 1250 | 375 | 800 | 3 |
| 75 | 200 | MWP75 | 175 | 900 | 2130 | 200 | 1100 | 1500 | 450 | 900 | 5 |
| 100 | 200 | MWP100 | 200 | 900 | 2250 | 200 | 1200 | 1550 | 500 | 1010 | 5 |
| 150 | 250 | MWP150 | 200 | 1000 | 2400 | 250 | 1400 | 1800 | 600 | 1120 | 7.5 |
| 200 | 250 | MWP200 | 300 | 1200 | 2800 | 250 | 1400 | 2000 | 700 | 1350 | 10 |
| 300 | 250 | MWP300 | 300 | 1400 | 3150 | 250 | 1600 | 2250 | 900 | 1500 | 20 |
