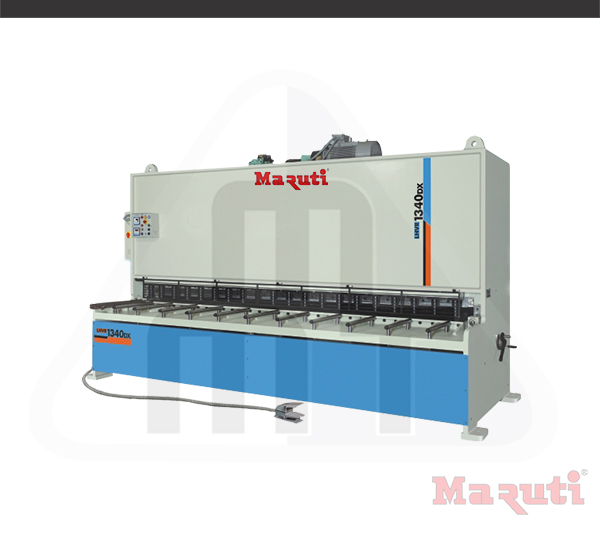

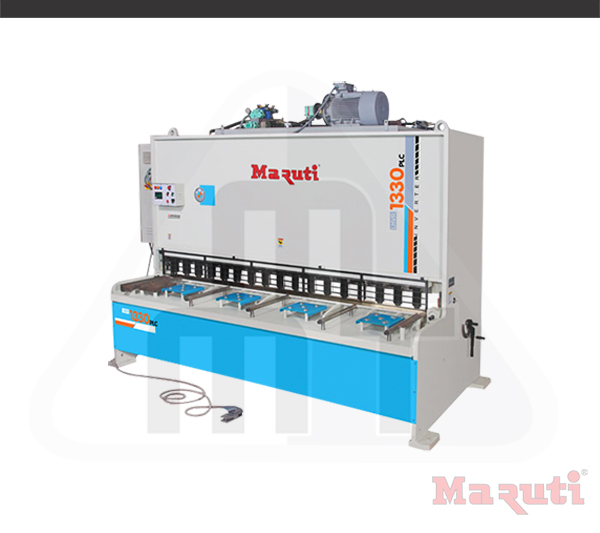

Hydraulic Shearing Machine

DESCRIPTION

Maruti Machine Tools offers Hydraulic Variable Rake Angle Shears which is rated as one of the best in the markets due to its tensile strength and robust build. These machines are reliable and high performance based. These have mono-block rigid welded steel structure to deflect tensile movement.

Their blade gaps adjusted with levers for clean cuts and its hardened rollers guide beam for constant blade gap. The rake angle is adjustable to suit thickness and material; the sheets are clamped hydraulically before cut starts.

The NC Hydraulic Shears that we manufacture is a product which speaks for itself and is highly trusted worldwide for its optimum characteristics. Due to the inviolable quality of our machines and their terrific lifelong performance we have become one of the finest Hydraulic Shearing Machines Exporters in India.

PRODUCT OVERVIEW

STANDARD FEATURE

Moving beams synchronised by differential cylinders
Shearing-clamping forces adjustible to suit jobs
Both blades premium HCHCr,with four usable edges
Cutting lengths and positions adjustible for shorter jobs
Beam returns on releasing foot switch for smaller cuts
Cutting area illuminated for clear view of blades
First two hold downs spaced closer at both ends

SPECIFICATIONS

Squaring arm 1000mm at left with hardened lines
Squaring arm 600mm at right helps distribute wear
Front gauging with stopsm, scale on squaring arm
Hardened rods recessed table for easy sheet feading
Ramp on rear slides cut out sheets outside shear area
Foot switch movable for operation from safe position
Finger safety gaurd with clear view of lighted cutting area
Efficient compact power pack with minimum piping
Electricals neatly wired-cabled for trouble shooting

TECHNICAL SPECIFICATIONS

Model	Shearing Length mm	Shear Thic. Rake Angle/ (Min./Max.)		Rake Angle	Rake Angle Range	Strokes/Minute at Min. & Max. Rake Angle	Hold downs	Holding Force Kgs.	Power H.P.	Over all Diamensions in mm (L x W x H)	Approx. Weight Kgs.
		M.S.	S.S.
MHVR 325	2500	3.15/4	2/3	1°15'	0.5-2°	28-13	13	2500	5	3150 × 2000 × 2400	3800
MHVR 330	3000	3.15/4	2/3	1°15'	0.5-2°	24-9	16	2500	5	3500 × 2000 × 2400	4400
MHVR 412	1250	4/6	3/4	1°37	0.5-3°	33-17	5	4000	5	2000 × 2000 × 2400	2700
MHVR 415	1500	4/6	3/4	1°37'	0.5-3°	30-15	8	4500	5	2250 × 2000 × 2400	3200
MHVR 420	2000	4/6	3/4	1°37'	0.5-3°	28-13	11	6200	7.5	2750 × 2000 × 2400	3500
MHVR 425	2500	4/6	3/4	1°37'	0.5-3°	26-8	13	8000	7.5	3400 × 2350 × 2450	5200
MHVR 430	3000	4/6	3/4	1°37'	0.5-3°	24-6	16	10000	10	4000 × 2350 × 2450	6000
MHVR 440	4000	4/6	3/4	1°45'	0.5-3°	22-6	20	12000	10	4500 × 2350 × 2450	8500
MHVR 615	1500	6/8	4/6	1°45'	0.5-3°	24-8	9	6600	10	2250 × 2350 × 2500	4000
MHVR 620	2000	6/8	4/6	1°45'	0.5-3°	22-7	11	6500	10	2750 × 2350 × 2500	4300
MHVR 625	2500	6/8	4/6	1°45'	0.5-3°	28-8	14	8500	15	3400 × 2350 × 2500	6200
MHVR 630	3000	6/8	4/6	1°45'	0.5-3°	24-6	16	10800	15	4000 × 2350 × 2500	7000
MHVR 640	4000	6/8	4/6	2°	0.5-3°	24-6	20	13600	20	5100 × 2700 × 2800	8400
MHVR 815	1500	8/10	6/8	2°	0.5-3°	22-10	9	10500	15	2250 × 2600 × 2650	5000
MHVR 820	2000	8/10	6/8	2°	0.5-3°	18-8	11	12500	15	2750 × 2600 × 2650	5500
MHVR 825	2500	8/10	6/8	2°	0.5-3°	24-8	14	16300	20	3500 × 2600 × 2650	6800
MHVR 830	3000	8/10	6/8	2°	0.5-3°	20-6	16	18500	20	4200 × 2600 × 2650	7700
MHVR 840	4000	8/10	6/8	2°	0.5-3°	20-8	20	23000	25	5200 × 2900 × 2800	13500
MHVR 1015	1500	10/13	8/10	2°	0.5-3°	20-10	9	10500	15	2250 × 2650 × 2700	5500
MHVR 1020	2000	10/13	8/10	2°	0.5-3°	18-8	11	12600	15	2750 × 2650 × 2700	6000
MHVR 1025	2500	10/13	8/10	2°	0.5-3°	24-8	14	17500	20	3600 × 2650 × 2700	8000
MHVR 1030	3000	10/13	8/10	2°	0.5-3°	20-6	16	20000	20	4200 × 2650 × 2700	10500
MHVR 1040	4000	10/13	8/10	2°	0.5-3°	18-6	20	25000	30	5200 × 2900 × 2900	15200
MHVR 1320	2000	13/16	10/13	2°	1-3°	13-5	11	16500	20	2750 × 2650 × 2950	7000
MHVR 1325	2500	13/16	10/13	2°	1-3°	15-10	13	32000	25	3600 × 2650 × 2950	9600
MHVR 1330	3000	13/16	10/13	2°	1-3°	12/06/15	16	37000	25	4200 × 2650 × 2950	11800
MHVR 1340	4000	13/16	10/13	2°	1-3°	10/04/15	20	22000	30	5200 × 3000 × 3050	17800
MHVR 1620	2000	16/20	13/16	2°	1-3°	13-7	11	20000	25	2750 × 2950 × 3150	12000
MHVR 1625	2500	16/20	13/16	2°	1-3°	15-8	13	40000	30	3600 × 2950 × 3150	12000
MHVR 1630	3000	16/20	13/16	2°	1-3°	12/06/15	16	43500	30	4250 × 2950 × 3150	15300
MHVR 1640	4000	16/20	13/16	2°	1-3°	10/04/15	20	30000	30	5200 × 3050 × 3500	21500
MHVR 2020	2000	20/25	16/20	2°	1-3°	16-8	11	32000	40	2900 × 2950 × 3150	17000
MHVR 2025	2500	20/25	16/20	2°	1-3°	15-8	13	48000	40	3600 × 2950 × 3150	18000
MHVR 2030	3000	20/25	16/20	2°	1-3°	12/06/15	16	52000	40	4250 × 2950 × 3150	20000
MHVR 2040	4000	20/25	16/20	2°	1-3°	10/04/15	20	30000	50	5200 × 3050 × 3500	24000
Capacities rated for M.S. of U.T.S. 45kg/mm² Yield 28 kg/mm² & S.S. of U.T.S. 72 kg/mm² Yield 45 kg/mm². Machine will not cut any thickness variation beyond rated capacity for any length. Right to change specification, features, accessories without notice reversed. Compliance with safety requirements as per local regulations is responsibility of the user. All Dimensions are in mm.
